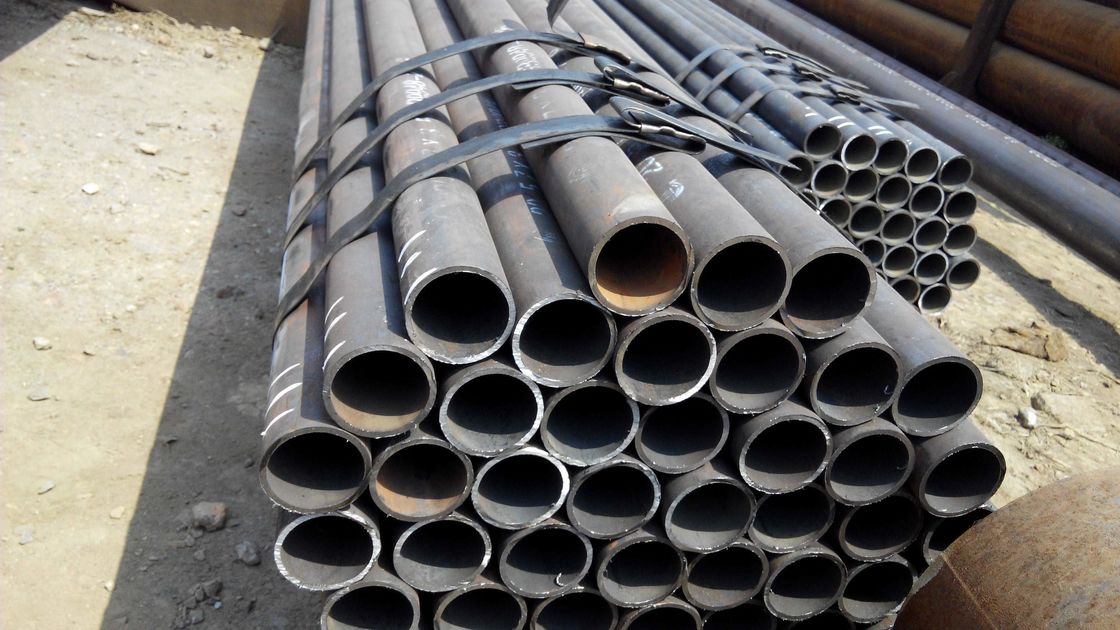

Les nervures en acier du tube 4 de la chaudière DIN17175 filètent la résistance à la corrosion
Product Details
| Nom de produit: | Tube de chaudière sans couture d'acier au carbone | Application: | Pour la chaudière de pression élevée, moyenne, basse et le but de pression |
|---|---|---|---|
| Norme: | DIN17175 | Matériel: | ST35.8 |
| Mettre en évidence |
Tube en acier de la chaudière DIN17175,4 nervures filètent le tube en acier de chaudière,DIN17175 a fileté le tube de fil |
||
Product Description
Tuyau d'acier au carbone sans couture à haute pression de St 37,8 de tube de chaudière d'acier au carbone
Norme de production : GB/T20409-2006
SteelGrade : 20G, 20MNG, 25MNG, 12CRMOG, 15CRMOG, SA210A1, SA210C, SA213T2/T12, WB36, T91, T11,
P11, P22, P92, P5, P9, R102, CR5MO, 16MO3,12CR2MOWVTIB
Les fils numérotent : 4ribs/6ribs/8ribs/12ribs
Le tube rayé de chaudière à haute pression interne de fil est un genre de processus d'endophragm la ligne en spirale le tuyau d'acier sans couture. Application principale dedans sur le mur de refroidissement par l'eau de la chaudière de service de capacité. Habituellement avec le tube fluorescent que les utilisations compare, il peut maintenir l'état nucléaire d'ébullition dans la condition de fonctionnement de charge de grosse fièvre, évite ainsi d'envoyer l'ébullition filmante d'état, empêche le tuyau pour griller, rallonge la durée de vie de tuyau.
Paramètres de Chemical&Mechanical
| Catégorie | C | Manganèse | SI | Cr | MOIS | S | P |
| 20G | 0.17~0.23 | 0.35~0.65 | 0.17~0.37 | --- | --- | ≤0.020 | ≤0.025 |
| 20MnG | 0.17~0.23 | 0.70~1.00 | 0.17~0.37 | --- | --- | ≤0.020 | ≤0.025 |
| 25MnG | 0.22~0.29 | 0.70~1.00 | 0.17~0.37 | --- | --- | ≤0.020 | ≤0.025 |
| 12CrMoG | 0.08~0.15 | 0.40~0.70 | 0.17~0.37 | 0.40~0.70 | 0.40~0.55 | ≤0.020 | ≤0.025 |
| 15CrMoG | 0.12~0.18 | 0.40~0.70 | 0.17~0.37 | 0.80~1.10 | 0.40~0.55 | ≤0.020 | ≤0.025 |
| SA-210A1 | ≤0.27 | ≤0.93 | ≥0.10 | --- | --- | ≤0.035 | ≤0.035 |
| SA-210C | ≤0.35 | 0.29~1.06 | ≥0.10 | --- | --- | ≤0.035 | ≤0.035 |
| SA-213T2 | 0.10~0.20 | 0.30~0.61 | 0.10~0.30 | 0.50~0.81 | 0.44~0.65 | ≤0.025 | ≤0.025 |
| SA-213T12 | 0.05~0.15 | 0.30~0.61 | ≤0.50 | 0.80~1.25 | 0.44~0.65 | ≤0.025 | ≤0.025 |
| Catégorie | T (MPA) | Y (MPA) | E (%) | Dureté |
| 20G | 410~550 | 245 | ≥24 | --- |
| 20MnG | ≥415 | ≥240 | ≥22 | --- |
| 25MnG | ≥485 | ≥275 | ≥20 | --- |
| 12CrMoG | 410~560 | ≥205 | ≥21 | --- |
| 15CrMoG | 440~640 | ≥235 | ≥21 | --- |
| SA-210C | ≥415 | ≥255 | ≥30 | ≤143HBW |
| SA-210A1 | ≥485 | ≥275 | ≥30 | ≤179HBW |
| SA-213T2 | ≥415 | ≥205 | ≥30 | ≤163HBW |
| SA-213T12 | ≥415 | ≥220 | ≥30 | ≤163HBW |
| Tailles de tube pour des échangeurs de chaleur et des condensateurs et chaudière | |||||||||||
| Diamètre extérieur | BWG | ||||||||||
| 25 | 22 | 20 | 18 | 16 | 14 | 12 | 10 | ||||
| Épaisseur de paroi millimètre | |||||||||||
| 0,508 | 0,71 | 0,89 | 1,24 | 1,65 | 2,11 | 2,77 | 3,40 | ||||
| millimètre | pouce | Poids kg/m | |||||||||
| 6,35 | 1/4 | 0,081 | 0,109 | 0,133 | 0,174 | 0,212 | |||||
| 9,53 | 3/8 | 0,126 | 0,157 | 0,193 | 0,257 | 0,356 | 0,429 | ||||
| 12,7 | 1/2 | 0,214 | 0,263 | 0,356 | 0,457 | 0,612 | 0,754 | ||||
| 15,88 | 5/8 | 0,271 | 0,334 | 0,455 | 0,588 | 0,796 | 0,995 | ||||
| 19,05 | 3/4 | 0,327 | 0,405 | 0,553 | 0,729 | 0,895 | 1,236 | ||||
| 25,4 | 1 | 0,44 | 0,546 | 0,75 | 0,981 | 1,234 | 1,574 | 2,05 | |||
| 31,75 | 1 1/4 | 0,554 | 0,688 | 0,947 | 1,244 | 1,574 | 2,014 | 2,641 | |||
| 38,1 | 1 1/2 | 0,667 | 0,832 | 1,144 | 1,514 | 1,904 | 2,454 | 3,233 | |||
| 44,5 | 1 3/4 | 1,342 | 1,774 | 2,244 | 2,894 | 3,5 | |||||
| 50,8 | 2 | 1,549 | 2,034 | 2,574 | 3,334 | 4,03 | |||||
| 63,5 | 2 1/2 | 1,949 | 2,554 | 3,244 | 4,214 | 5,13 | |||||
| 76,2 | 3 | 2,345 | 3,084 | 3,914 | 5,094 | 6,19 | |||||
| 88,9 | 3 1/2 | 2,729 | 3,609 | 4,584 | 5,974 | 7,27 | |||||
| 101,6 | 4 | 4,134 | 5,254 | 6,854 | 8,35 | ||||||
| 114,3 | 4 1/2 | 4,654 | 5,924 | 7,734 | 9,43 | ||||||
| Forme de tube : Droit et coude en U et à ailettes et enroulé | |||||||||||
| Tube d'acier inoxydable : A/SA213, A/SA249, A/SA268, A/SA269, A/SA789, EN10216-5, A/SA688, B/SB163, JIS-G3463, GOST9941-81. | |||||||||||
| Tube en acier &Alloy de carbone : A/SA178, A/SA179, A/SA192, A/SA209, A/SA210, A/SA213, A.SA214 |
|||||||||||
